View Issue Details

IDProjectCategoryView StatusLast Update
0001735Composrcore_rich_mediapublic2016-01-24 16:50
ReporterChris GrahamAssigned ToChris Graham
SeverityFeature-request
Status resolvedResolutionfixed
Product Version
Fixed in Version
Summary0001735: Better Comcode WYSIWYG editing
DescriptionIt's messy having Comcode tags written in text in the WYSIWYG editor, and people love to use lots of Comcode, more and more.

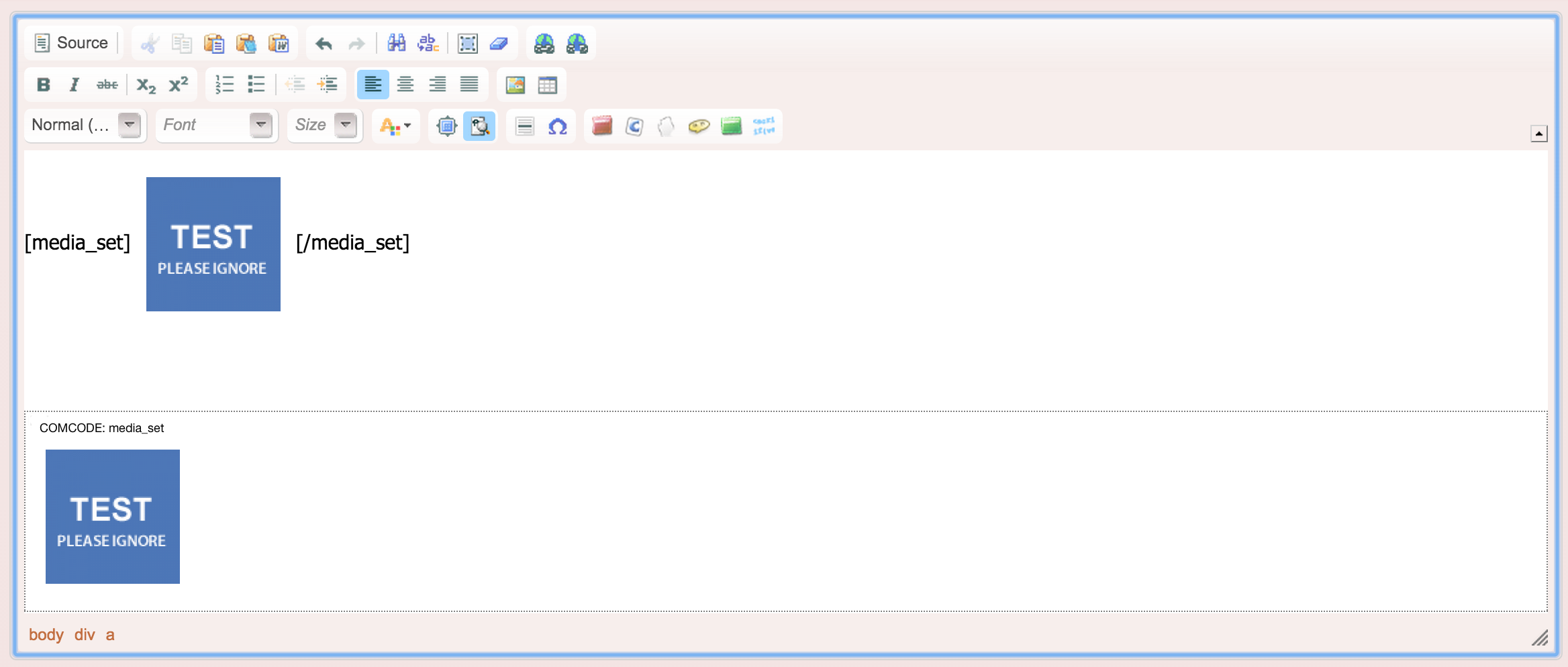

See the attached screenshot. The top half is how it looks now. The bottom half is how it would ideally look.

If you pressed the Comcode button while inside a Comcode element it would take you to a screen IN FRONT OF the current start of the Comcode tag assistant. This screen would ask you whether you wanted to:
 - edit that element (which one, if multiple are nested)
 - delete that element (which one, if multiple are nested)
 - insert a new one.

On an implementation level we'd do this by supporting tags like "x-cms-media_set" within the editor. It would not be all Comcode tags, but a large number of those that wrap content (quote, code, codebox, surround, all come to mind). We'd process these back out when saving from the WYSIWYG editor, and smartly insert them when generating for the WYSIWYG editor.

One important check is to ensure we only place these if the Comcode tags align with the tree structure of the HTML. If we had something like the following, we could not do it in that particular case:
<div>[surround]</div>[/surround]

It would be super-awesome if we could do this for Tempcode directives too. Lots of ugliness comes from these. Just in a basic way.
TagsPseudo-addon: CKEditor
Time estimation (hours)16
Sponsorship open


If users wish to sponsor this issue (optional, some issues are implemented without sponsorship)...
If users wish to sponsor this issue (optional, some issues are implemented without sponsorship)...

Relationships

has duplicate 0001561 closedChris Graham Implement Comcode/Tempcode syntax highlighting

Activities

Chris Graham

2014-12-06 00:07

administrator

Chris Graham

2015-02-07 20:37

administrator   ~0002530

Quick note that we need to update our tut_wysiwyg tutorial when this is done.

Chris Graham

2015-02-22 22:04

administrator

Chris Graham

2015-02-22 22:04

administrator   ~0002580

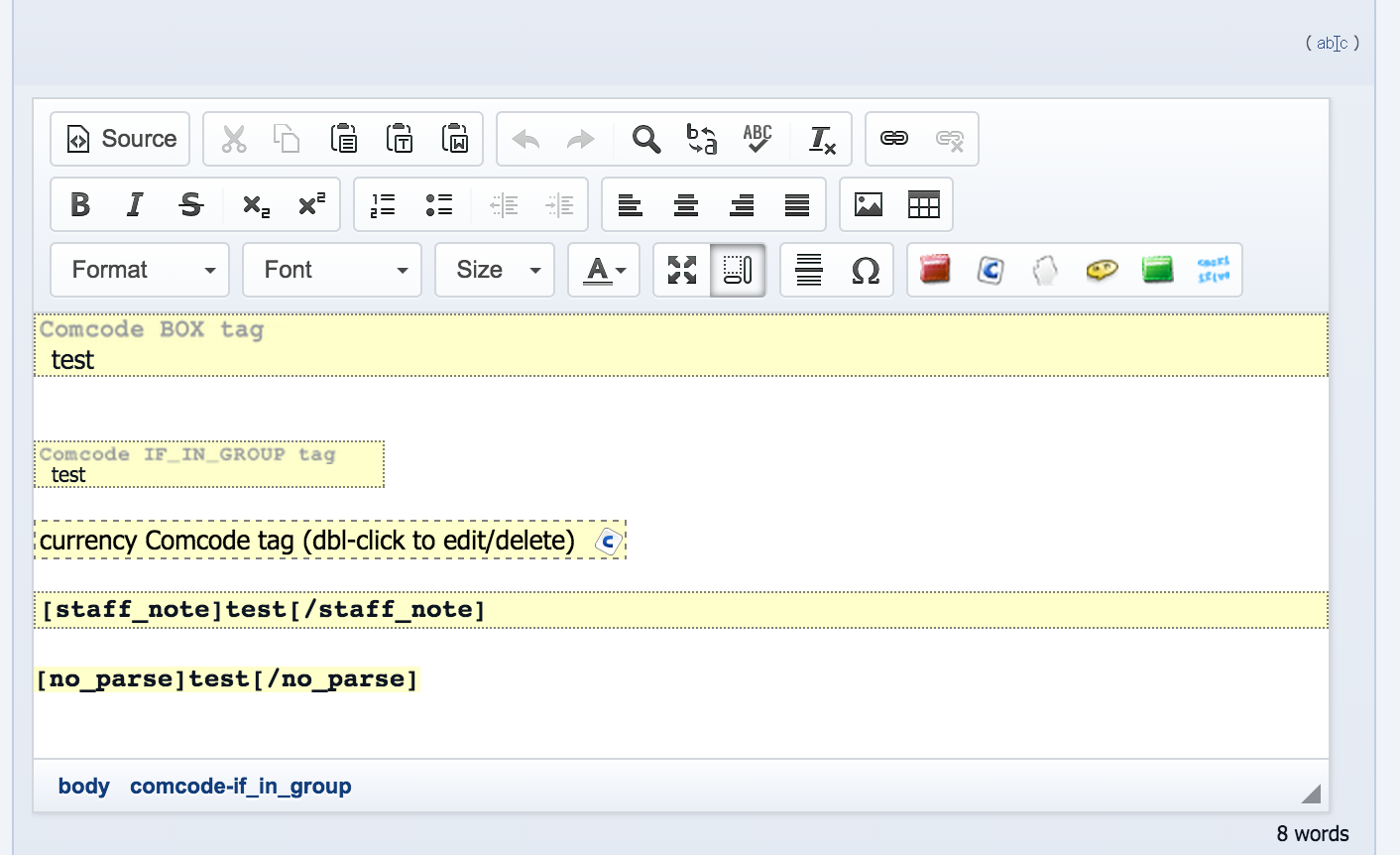

Coming along nicely. New screenshot posted.

Issue History

Date Modified Username Field Change
2017-05-06 23:44 Chris Graham Tag Renamed CKEditor => Pseudo-addon: CKEditor
